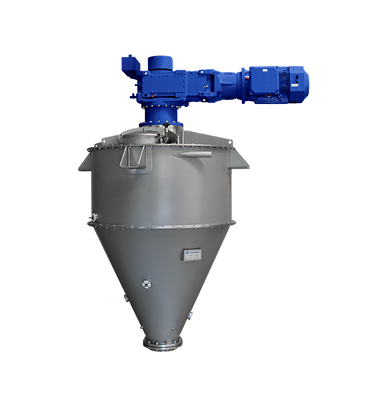

Conical Paddle Mixer
The CPM conical paddle mixer is a multi-purpose batch mixer designed for mixing, drying and reaction processes with maximum efficiency and minimal product distortion.
Principle of Operation
The CPM Conical Paddle Mixer features a conical vessel with a central paddle rotor that rotates at tip speeds of 1–10 m/s, generating a gentle combination of vertical, axial and radial movement. The paddles lift the product upward along the wall and guide it towards the centre, where gravity draws it back down — maintaining continuous motion even at low speeds.
This controlled, convective movement ensures uniform distribution of all components while preventing product degradation. The mixer’s jacketed wall enables precise heating, cooling or drying, and its open, obstruction-free interior ensures optimal hygiene and minimal product retention.
Thanks to its bottom discharge valve, the CPM achieves full product emptying, reduces manual cleaning, and minimises the risk of cross-contamination between batches. The design eliminates dead zones and allows excellent process reproducibility — ideal for demanding applications such as instant products, powder–liquid blending, or low-temperature drying under vacuum.
Features
Gentle, low-shear mixing of fragile or segregative powders
Suitable for mixing, drying and reaction processes
Accurate temperature control with jacketed vessel and cover
High mixing accuracy and short batch times
Fast and complete discharge through the bottom valve
Compact, energy-efficient, heavy-duty design
Easy to clean; hygienic construction
Available from 50 to >15,000 L
Specifications
| Volume | Vessel diameter | Outlet diameter | Height incl. motor and ball valve | Typical motor power |
|---|---|---|---|---|
| 50 | 500 | 80 | 1,250 | 0.25 – 1.1 |
| 500 | 1,000 | 150 | 2,500 | 2.2 – 11 |
| 1,000 | 1,250 | 250 | 3,200 | 4 – 15 |
| 2,000 | 1,550 | 250 | 4,000 | 7.5 – 30 |
| 3,000 - 15,000 | 1,750 - 3,000 | 300 - 500 | 4,500 - 7,250 | on request |
| > 15,000 | on request | on request | on request | on request |

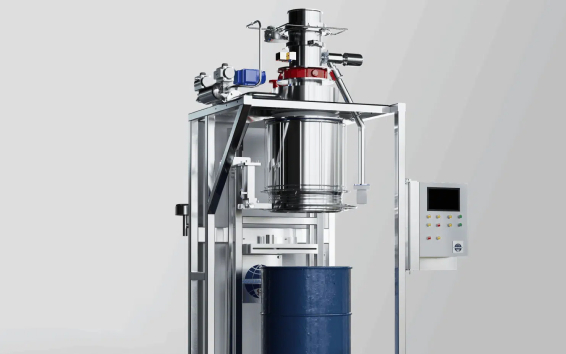

experimental verification
Before investing in new equipment, please conduct tests on the materials used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory trials to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
