Mircon Jet-T MJT
The Micron Jet is a highly energy efficient jet mill constructed with a unique impact grinding mechanism.

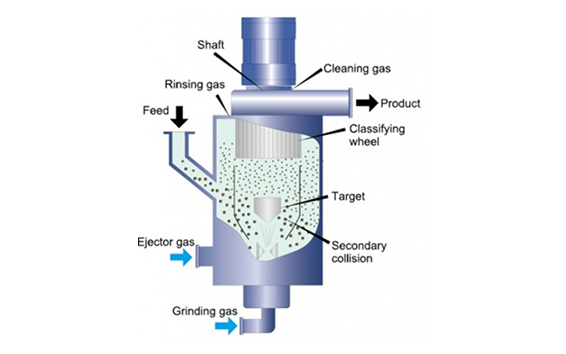

Principle of Operation
The Micron Jet is a target jet mill with a rotating classifying rotor for precise product size control. The raw material is accelerated by the high pressure jet stream generated from the nozzle located at the bottom of the machine and hits the impact plate, where the impact causes the particles to be ground. Particles that pass through the impact chamber are then carried to the classifying rotor at the top of the unit and are classified to the required particle size. Fine particles that have been classified by the rotor flow to the product collector, and any coarse particles drop to the bottom portion of the unit where the side ejector effect carries them back to the grinding chamber. Product sizes can be easily adjusted by changing the rotation speed of the classifying rotor. The Micron Jet T type inert gas circulation system consists of a feeder, the Micron Jet T type mill, cyclone, bag filter, and a compressor.
Features
High grinding efficiency：The grinding efficiency has been drastically improved by its unique impact structure.
Easy adjustment of product size：The classification point can be easily adjusted by changing the rotation speed of the classifying rotor.
High classification effectiveness：The ground materials are carried to the classifying chamber in a dispersed state, which allows for an effective classification.
Raw materials can be easily changed in a compact area：The number of items that make up the Micron Jet system are very limited which allows for easy cleaning even in a compact area.
Easy Cleaning：The unit structure designed with the cleaning process in mind can be easily disassembled. The hydraulic system that can be attached to the classifying section allows opening and closing procedures to be stress free.
Specifications
| Mode lI - II - II MJT-1 |
|---|
| Capacity II - II kg/h II 30~80 |
| Nominal grinding air volume II- II Nm³/hII8 |
| Dimensions (Main body) II Width II mm II 2000 |
| Dimensions (Main body) II Depth II mm II 2000 |
| Dimensions (Main body) II Height II mm II 3500 |
| Approx. mass II - II kg II 1200 |
| Material of powder contacting part II SS304 |
| Classifier II Wheel speed II rpm II 7000 |
| II Motor II kw II 5.5 |
| Ancillary facilities II Bag filter; Sinter Pulsejet collector II PSLC-900/18-6 |
| II Blower II Nm³/h II 20 |

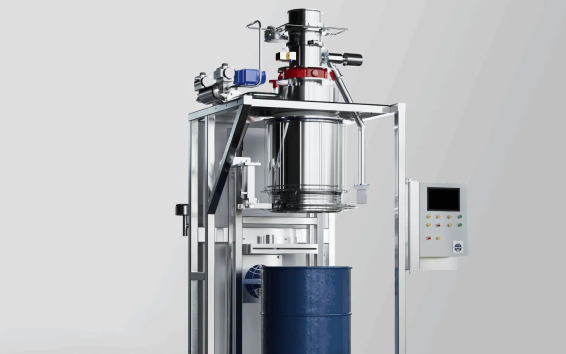

experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory trials to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
