Fine Impact Mill UPZ
The UPZ is a high-speed impact type fine grinding machine that can be equipped with 4 different types of hammers and 3 types of liners/screens.
Principle of Operation

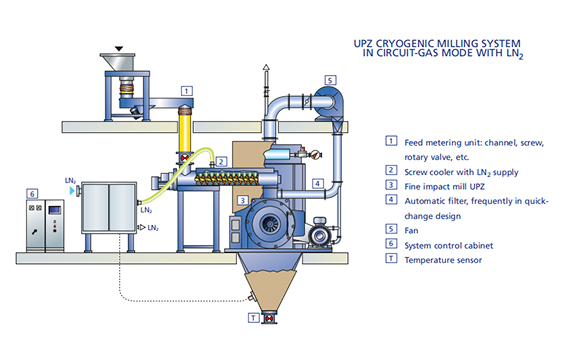

Alpine Ultraplex UPZ fine impact mills offer versatility in use combined with simplicity in operation. Because of the wide variety of feed materials, in which every comminution task demands its own tailor-made solution, the UPZ mills can be equipped with a variety of easily interchangeable milling elements. Tough-fibrous roots and spices, for example, require completely different milling elements from those required for granulated sugar in order to optimally fulfil the individual requirements, both in technical and economic terms.
UPZ mills can be equipped as a pin mill without a sieve with one rotating and one stationary pin disc. Or as a beater mill with a beater disc, swing or plate beater unit for operation with grinding tracks or sieves.
The overall result is a host of practice-oriented and perfectly coordinated equipment combinations. In short, the UPZ mill can be tailored to match every customer's individual requirements.
Features
Features
UPZ fine impact mills can be equipped with a host of different milling elements, thus fulfilling a great variety of demands on the end product, for example:
High fineness with sharp top cut
Production of end products that are low in fines with good flow properties
Production of powders with a high bulk density
Production of powders with a high mass fraction within a defined particle size range
Specifications
| Product line | up factor | Max. air flow rate | Plate beaters < 120 m/s | Speed（rpm） | Drive | Pin disc < 150 m/s | Speed | Drive | Beater disc < 85 m/s | Speed | Drive | Swing beaters < 85 m/s | Speed | Drive | Fa | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 0.06 | - | - | 18000 | 1.5 | - | 22000 | 1.5 | - | 18000 | 1.5 | - | - | - | - | - | - |
| 160 | 0.25 | - | - | 14000 | 5.5 | - | 18000 | 5.5 | - | 7600 | 5.5 | - | 7600 | 5.5 | - | - | - |
| 250 | 0.5 | 870 | - | 8300 | 11 | - | 11000 | 11 | - | 6300 | 7.5 | - | 6300 | 7.5 | - | 8550 | 11 |
| 315 | 1 | 1600 | - | 7100 | 18.5 | - | 9000 | 18.5 | - | 5000 | 11 | - | 5000 | 11 | - | - | - |
| 500 | 2 | 3200 | - | 4600 | 37 | - | 5910 | 37 | - | 3100 | 22 | - | 3310 | 22 | - | 4600 | 37 |
| 630 | 3.6 | 5700 | - | 3480 | 75 | - | 4920 | 75 | - | 2445 | 37 | - | 2445 | 37 | - | - | - |
| 800 | 4.5 | 7500 | - | 2850 | 90 | - | 3400 | 90 | - | 2000 | 45 | - | 2000 | 45 | - | - | - |
| 1000 | 6.3 | 10000 | - | 2380 | 110 | - | 2900 | 110 | - | 1475 | 55 | - | 1475 | 55 | - | 2380 | 110 |
| 1250 | 9 | 12500 | - | 1860 | 250 | - | 2700 | 250 | - | 1320 | 90 | - | 1320 | 90 | - | 1860 | 250 |
| 1400 | 14 | 14000 | - | 1490 | 315 | - | 2200 | 355 | - | 1100 | 160 | - | - | - | - | - | - |
experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory trials to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
