Mikro ACM Pulverizer
The ACM Pulverizer is a fine impact mill with a built-in classifier, widely used for many applications with over 2500 units sold throughout the world.
Principle of Operation
The product is fed into the ACM pneumatically. Size reduction is a result of the feed product impacting against the rotating grinding elements and against the stationary liner. At beater tip speeds of up to 140 m/s, fineness values of d97 = 10 µm are achieved. The product becomes entrained in the cooling, conveying and classifying air drawn through the mill by the downstream fan and is routed along the guide vanes of the vane ring.
Characteristic of the ACM is the integrated dynamic classifier. The product/air mixture is distributed uniformly by the guide vane ring to the rotating classifier. Because of the two opposing forces and the different masses of the particles, the product is separated in the classifying zone into a coarse fraction and a fine fraction. The coarse material is rejected by the classifying wheel and returned to the grinding zone for further comminution. The fines pass through the classifying wheel and exit the mill. The cut point is a function of the classifying wheel speed, which can be steplessly adjusted even during operation.
Features
Grinding and classifying in one machine
Compact and space-saving design
Cool and gentle grinding
Steep particle size distributions
Sharp and easily adjustable precision of cut
Simple to clean and maintain
High availability
Low noise emission
Low specific energy consumption
Pressure-shock-resistant PSR 11
Wear-protected
Suitable for combined grinding and drying
Specifications
| Size | Rotor drive | Classifier drive | Speed (h) | Mill (max.) | Speed (min.) | Classifier (max.) | Air flow rate | Bypass | Scale-up factor | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 0.55 | 10600 | 11900 | 1000 | 5400 | 330 | 60 | 0.2 | 630 | 220 | 650 | 500 |
| 5 | 5.5 | 1.1 | 9640 | 10400 | 1200 | 5000 | 510 | 100 | 0.5 | 1,450 | 580 | 790 | 5202 |
| 10 | 7.5 | 2.2 | 6,215 | 8,880 | 700 | 4,000 | 900 | 180 | 1 | 1,450 | 580 | 850 | 600 |
| 15 | 11 | 3 | 6,215 | 8,880 | 700 | 3,250 | 1,350 | 270 | 1.35 | 1,450 | 580 | 850 | 620 |
| 20 | 15 | 4 | 4,970 | 6,990 | 700 | 3,250 | 1,800 | 360 | 1.8 | 1,600 | 580 | 1,000 | 750 |
| 25 | 18.5 | 4 | 4,970 | 6,990 | 600 | 2,920 | 2,250 | 450 | 2.25 | 1,600 | 700 | 1,000 | 770 |
| 30 | 22 | 5.5 | 4,320 | 5,770 | 600 | 2,920 | 2,700 | 540 | 2.7 | 1,750 | 700 | 1,300 | 900 |
| 40 | 30 | 7.5 | 4,320 | 5,770 | 600 | 2,750 | 3,600 | 720 | 3.6 | 1,750 | 700 | 1,300 | 1,000 |
| 50 | 37 | 7.5 | 3,295 | 4,580 | 600 | 2,650 | 4,500 | 900 | 4.5 | 1,750 | 700 | 1,300 | 1,800 |
| 60 | 45 | 11 | 2,625 | 3,750 | 600 | 2,650 | 5,400 | 1,080 | 5.4 | 2,450 | 1,060 | 1,587 | 2,400 |
| 75 | 55 | 11 | 2,625 | 3,750 | 600 | 2,400 | 6,750 | 1,350 | 6.75 | 2,450 | 1,060 | 1,587 | 2,500 |
| 100 | 75 | 11 | 2,100 | 2,950 | 600 | 2,400 | 9,000 | 1,800 | 9 | 2,850 | 1,200 | 1,731 | 2,800 |
| 120 | 90 | 15 | 2,100 | 2,950 | 800 | 2,400 | 10,800 | 2,100 | 10.8 | 2,850 | 1,200 | 1,731 | 2,800 |
| 150 | 110 | 18.5 | 2,100 | 2,950 | 800 | 2,400 | 13,500 | 2,700 | 13.5 | 2,850 | 1,200 | 1,731 | 3,000 |
| 200 | 160 | 37 | 1,850 | 2,000 | 600 | 2200 | 18,000 | 3,000 | 18 | 3,310 | 1,300 | 2,180 | 9,500 |
| 300 | 250 | 45 | 1,650 | 1,850 | 600 | 2200 | 27,000 | 3,000 | 27 | 3,740 | 1,500 | 3,010 | 12,500 |
| 400 | 315 | 75 | 1,400 | 1,860 | 400 | 1,860 | 36,000 | 4,000 | 36 | - | - | - | - |
| 500 | 375 | 90 | 1,400 | 1,860 | 400 | 1,860 | 45,000 | 4,000 | 45 | 4,470 | 1,830 | 2,100 | 16,800-19,200 |
| 600 | 450 | 110 | 1,400 | 1,860 | 400 | 1,860 | 54,000 | 4,000 | 54 | - | - | - | - |

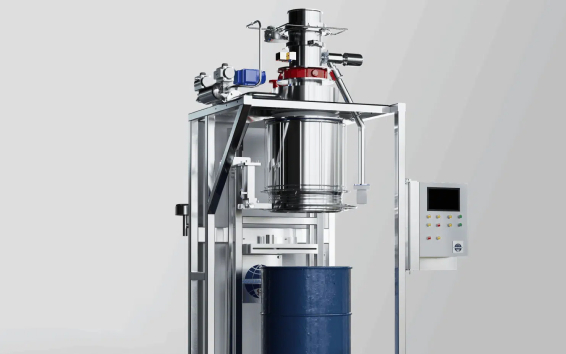

experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory trials to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
